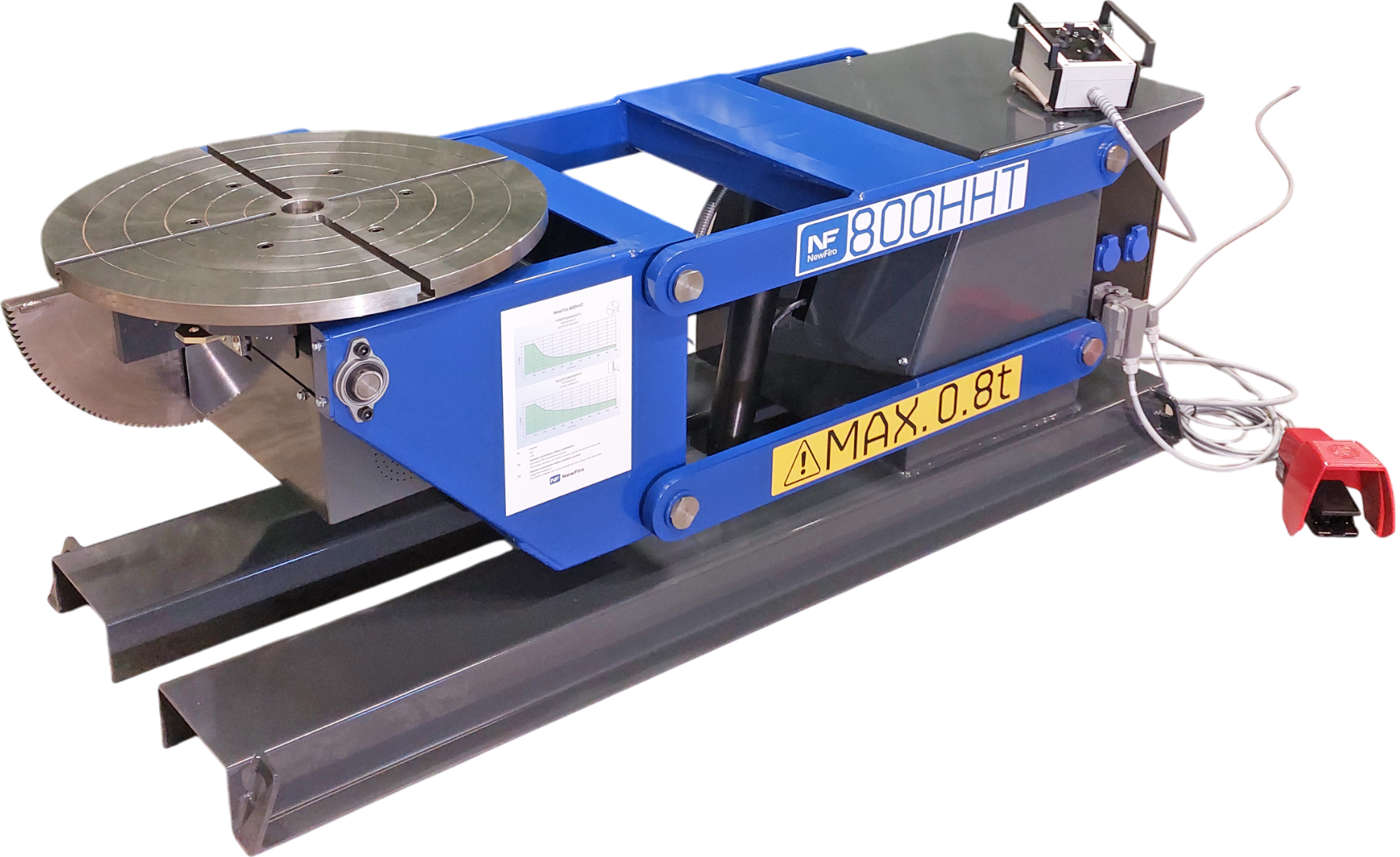

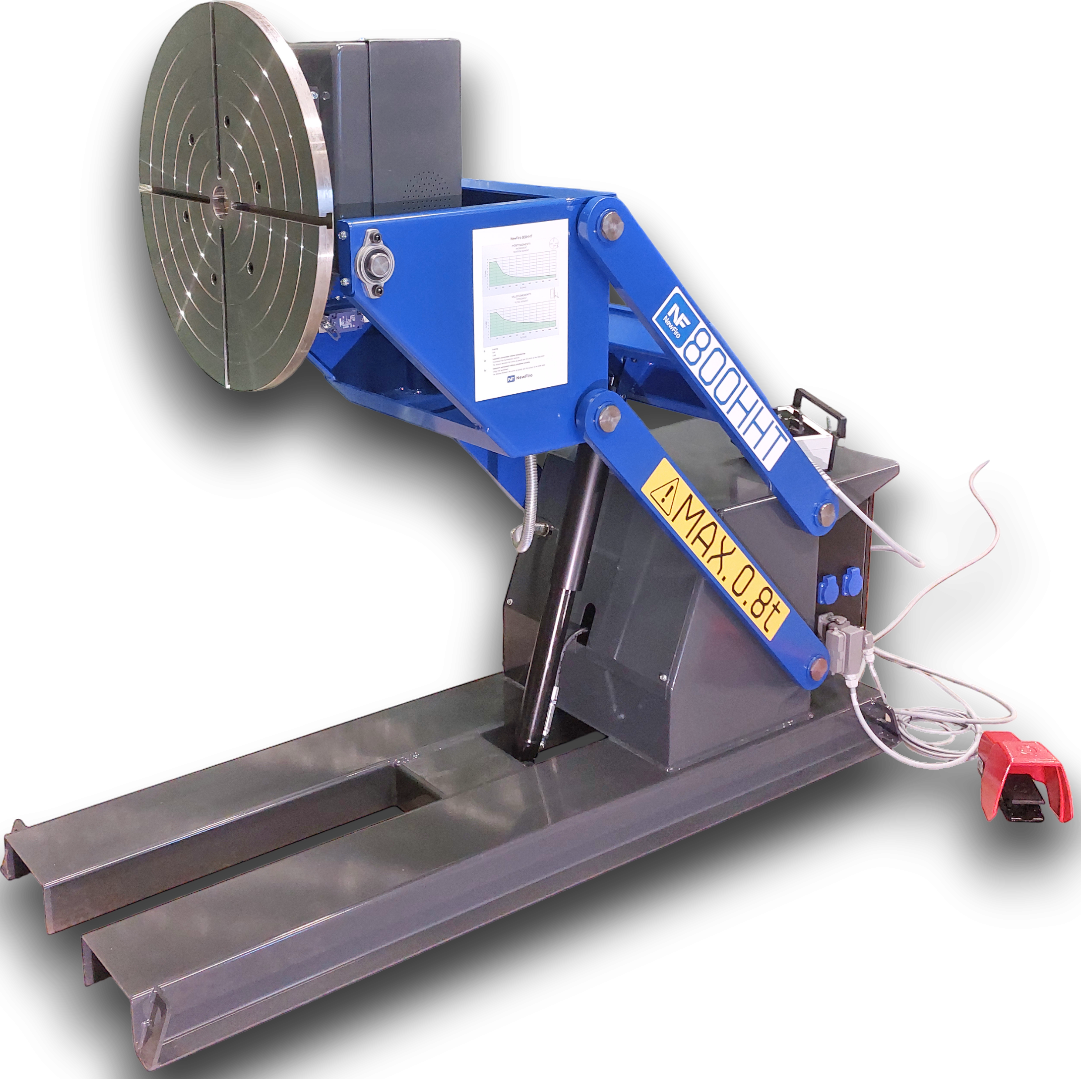

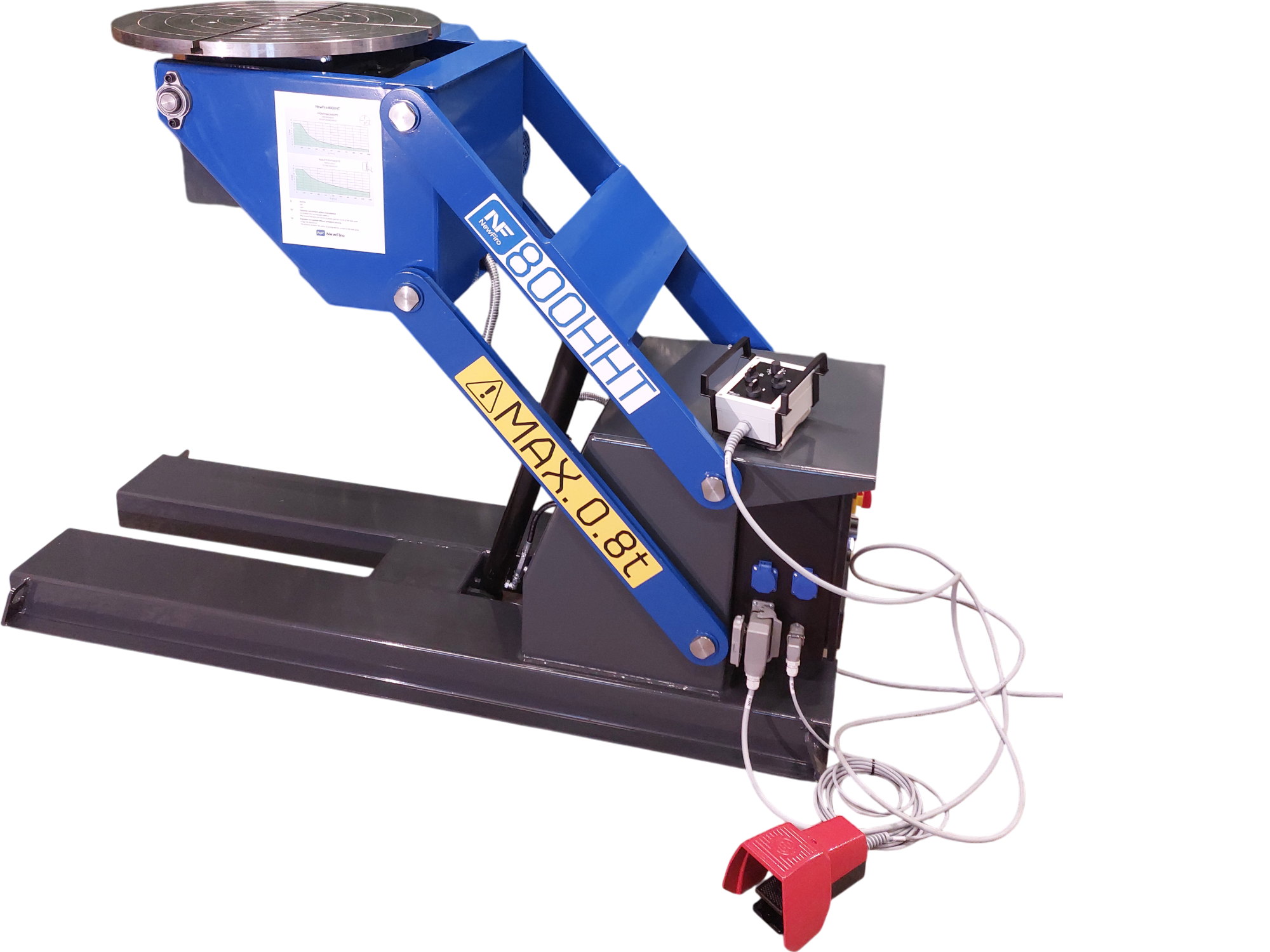

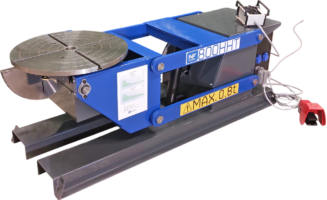

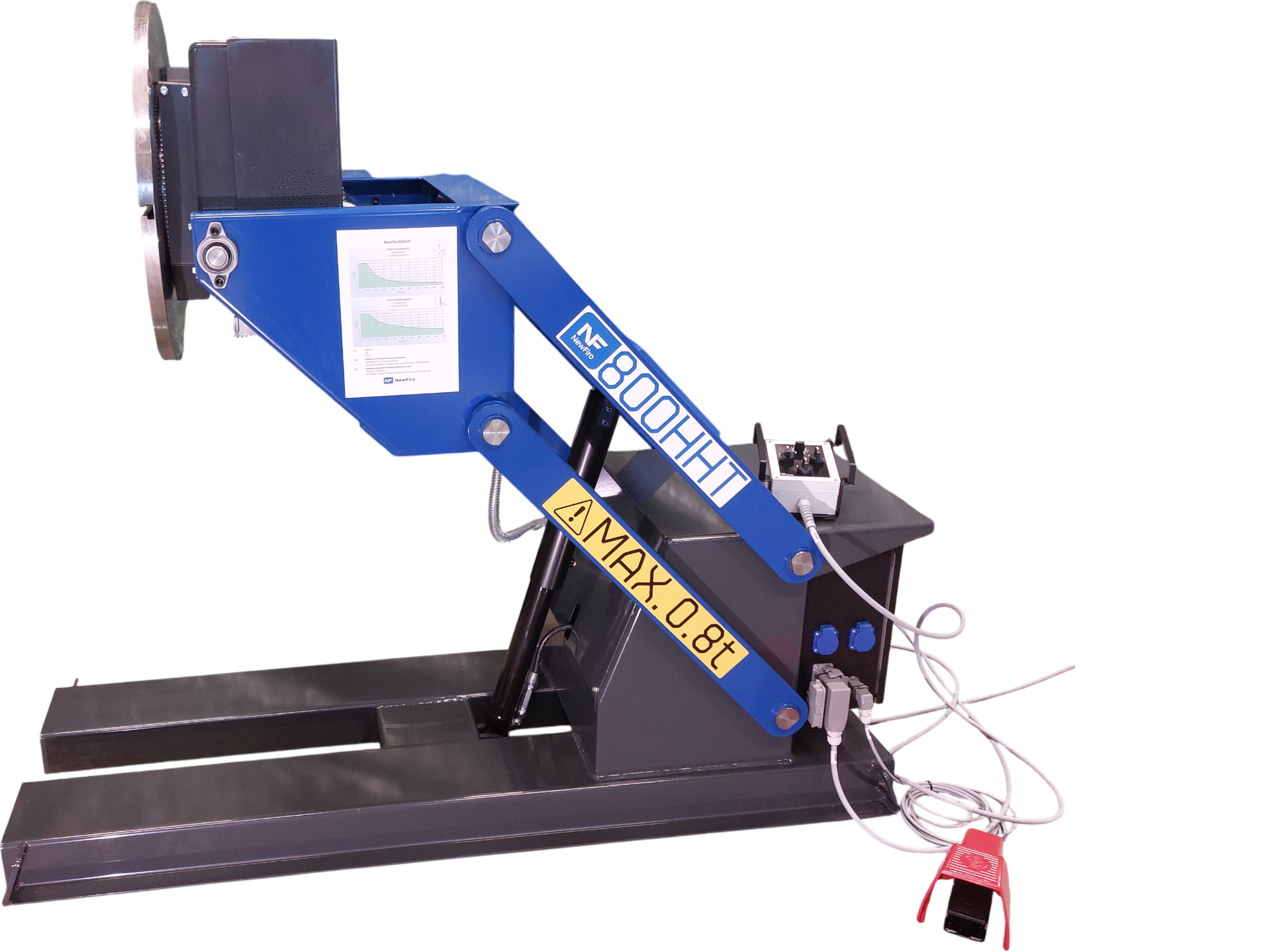

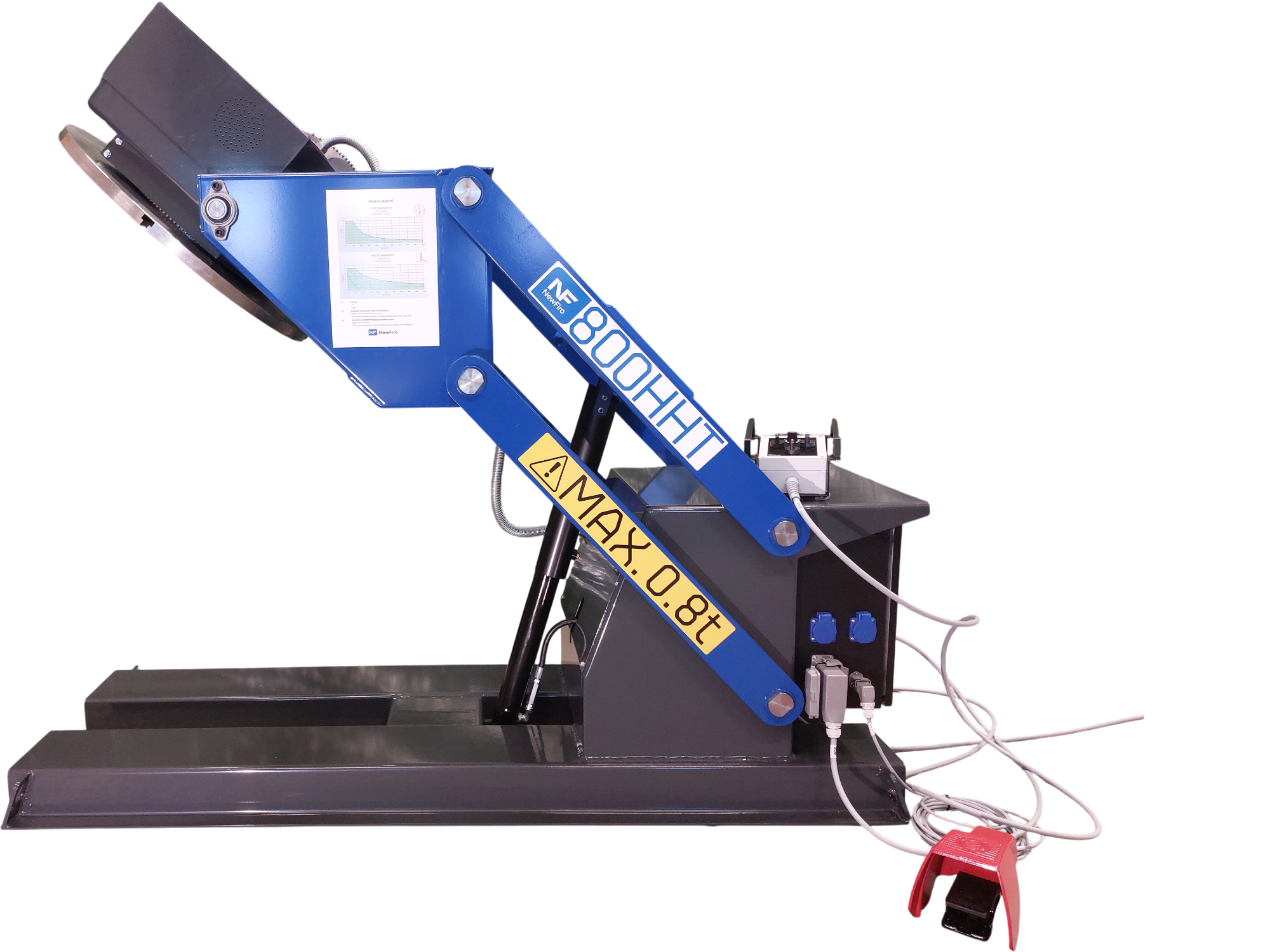

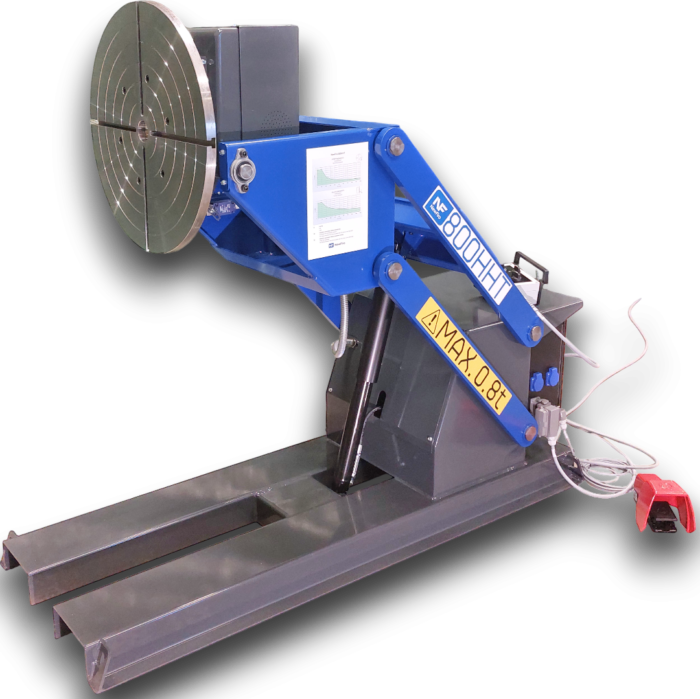

| Type | 800 HHT |
|---|---|
| Load | 8000 N |
| Rotation moment | 800 Nm |
| Rotation speed | 0,07-1,6 rpm |
| Tilting moment | 1700 Nm |
| Table plate diameter | 650 mm |
| Height | 680-1370 mm |
| Width | 820 mm |
| Length | 1930 mm |
| Weight | 520 kg |
