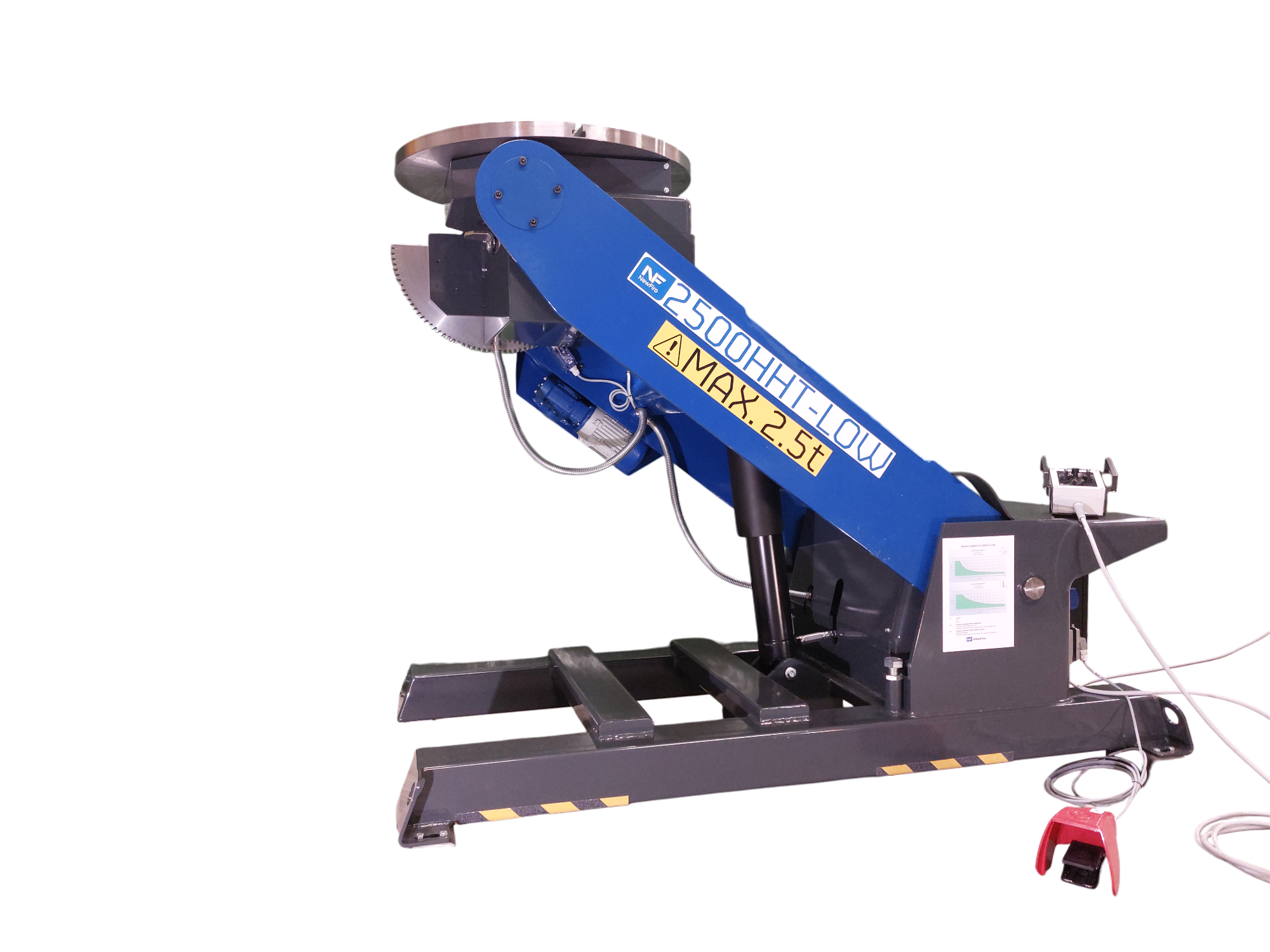

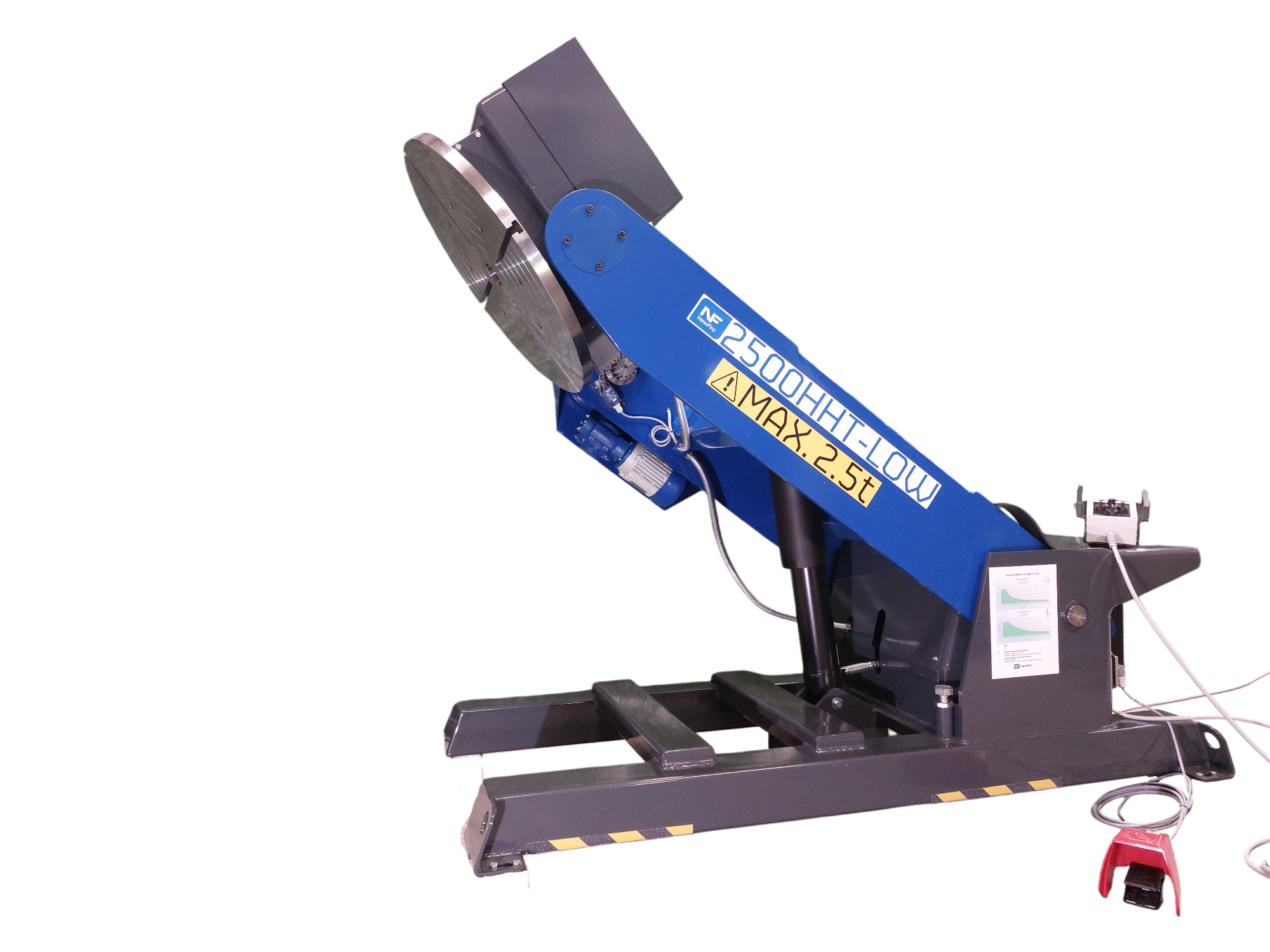

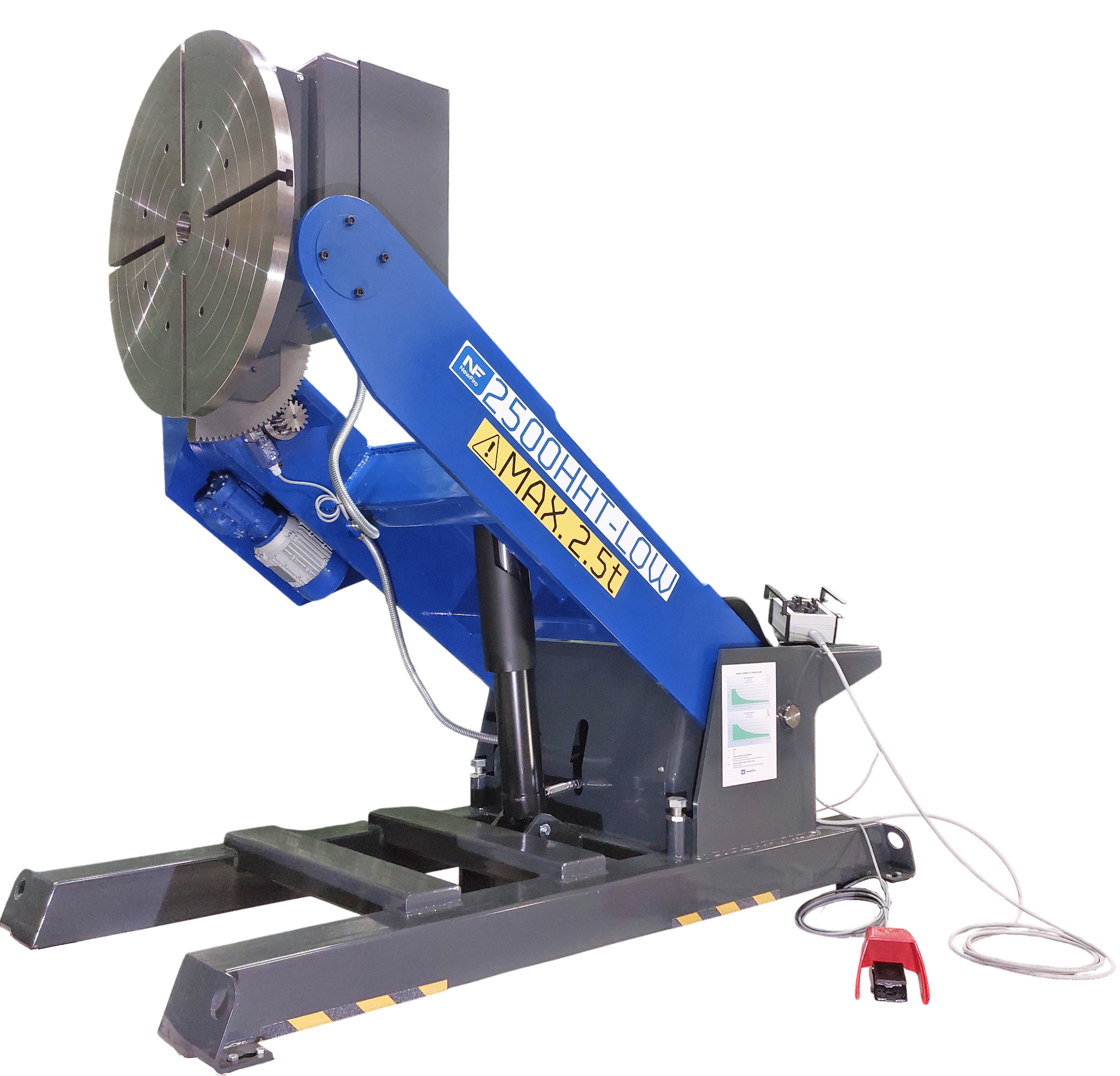

2500 HHT-LOW


TYPE2500 HHT-LOW
Load25000 N
Rotation moment2500 Nm
Rotation speed0,05-1,6 rpm
Tilting moment6500 Nm
Table plate diameter800 mm
Height650-1640 mm
Width1200 mm
Length2400 mm
Weight1250 kg
